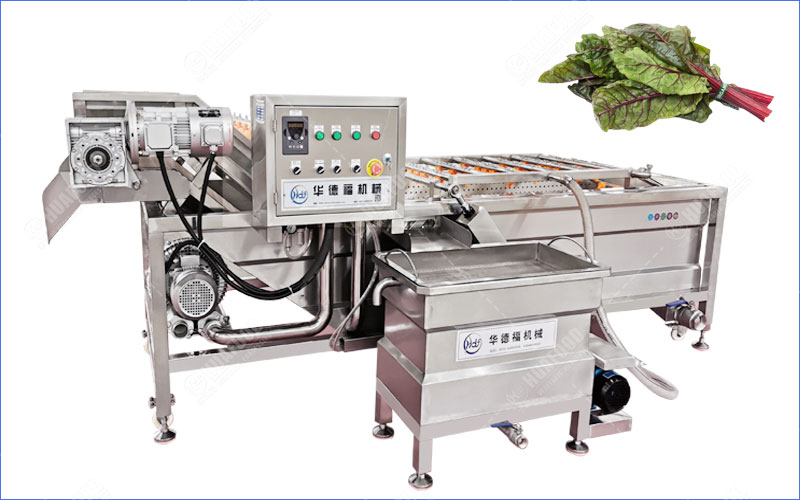

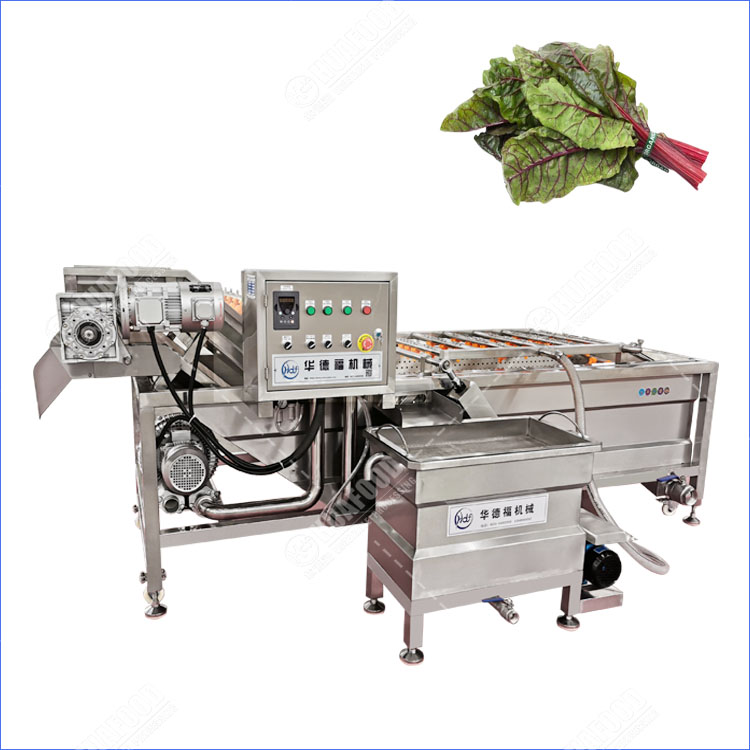

Industrial Swiss Chard Vegetable Washing Machine 500kg/h

The Industrial Swiss Chard Vegetable Bubble Washing Machine operates on a multi-stage composite cleaning principle that integrates bubble agitation, spray rinsing, and water filtration into a single continuous process. Here is how it works, stage by stage:

Stage 1 – Air Bubble Tumbling

High-pressure air is injected through strategically placed nozzles at the bottom of the washing tank, creating millions of microbubbles that rise continuously through the water column. As Swiss chard is fed into the tank via a variable-speed mesh conveyor, the rising bubbles create a gentle tumbling and floating action—the leaves roll, turn, and circulate within the water. This bubble-induced agitation serves two critical purposes: first, it ensures that every surface of the broad, crinkled Swiss chard leaves is exposed to the cleaning action; second, the micro-shock waves produced when bubbles burst against the leaf surface generate a scrubbing effect that loosens tightly adhered soil, sand, and tiny insects from every fold and crevice. Unlike mechanical scrubbers or brush rollers, this bubble action is so gentle that even wet, fragile Swiss chard leaves remain intact—no bruising, no tearing, no breakage.

Stage 2 – Gravity Separation & Debris Removal

As dirt, sand, and other heavy impurities are dislodged from the Swiss chard, they settle to the bottom of the washing tank under the force of gravity. The machine is equipped with a sedimentation chamber that traps these heavy particles, preventing them from being stirred back into the cleaning zone and re-contaminating the produce. Heavy particles are periodically discharged through a bottom drain outlet. Simultaneously, lightweight debris—such as small leaf fragments, stem pieces, and organic matter—floats to the water surface and is continuously removed via an overflow trough or skimming device. This dual separation mechanism ensures that the wash water remains relatively clean throughout the production run, maintaining consistent cleaning performance.

Stage 3 – High-Pressure Spray Rinsing

After passing through the bubble washing zone, the conveyor belt carries the Swiss chard upward and out of the water tank. At the exit point, the machine is equipped with a secondary spray rinsing system consisting of multiple high-pressure spray nozzles positioned above the conveyor. These nozzles deliver fresh or filtered water in a controlled spray pattern that provides a final, thorough rinse. This spray stage flushes away any remaining loosened debris that may still be clinging to the leaves, removes residual wash water that may contain suspended particles, and gives the Swiss chard a clean, glossy finish before it exits the machine. The spray pressure and flow rate can be adjusted based on the specific condition of each harvest batch.

Stage 4 – Water Recirculation & Filtration

A key feature of the machine's working principle is its closed-loop water circulation system. Water drawn from the tank is continuously pumped through a multi-stage filtration system that removes suspended solids and sediment. The filtered water is then recirculated back into the washing tank and spray system, significantly reducing fresh water consumption—saving up to 60% of water usage compared to single-pass systems—while maintaining consistent water quality throughout extended production runs.

The entire process—from infeed to discharge—takes approximately 3–5 minutes per batch, with the residence time adjustable via the variable-frequency drive that controls conveyor belt speed. This allows operators to fine-tune the cleaning intensity based on the specific soil load and condition of each Swiss chard harvest.

1. Dual-Zone Bubble Generation System
The machine employs a dual-zone, variable-frequency air bubble array. The outer zone produces strong bubbles for initial soil loosening, while the inner zone uses micro-bubbles for gentle leaf separation. This two-tier approach ensures that stubborn grit is effectively dislodged while delicate leaves remain protected from damage. High-pressure air is injected through strategically placed nozzles at the bottom of the washing tank, creating millions of microbubbles that rise and gently agitate the water.

2. Full Stainless Steel Construction (SUS304)
All product-contact parts—including the washing tank, conveyor mesh belt, spray pipes, and frame—are fabricated from corrosion-resistant, food-grade stainless steel (SUS304). This material choice ensures durability in high-moisture environments, facilitates effortless sanitation between batches, meets international food safety standards, and provides excellent corrosion resistance for long-term operational stability.

3. Adjustable Processing Parameters
The machine features adjustable conveyor belt speed, water flow rate, spray pressure, and wash cycle duration via an intuitive control panel with a variable-frequency drive. Operators can fine-tune these parameters to match specific product requirements—from lightly soiled greenhouse-grown Swiss chard to heavily grit-laden field-harvested crops. This flexibility ensures optimal cleaning results across diverse operating conditions.

4. Integrated Water Recirculation & Filtration System
An integrated closed-loop water circulation system with built-in multi-layer filtration continuously cleans and recirculates wash water. The system removes suspended solids and sediment, maintaining wash water clarity throughout the production run and preventing re-contamination of already-cleaned produce. This feature significantly reduces fresh water consumption and supports environmentally conscious processing.

1. Superior Cleaning Performance for Swiss Chard
Swiss chard is notoriously difficult to clean due to its broad, crinkled leaves and thick, fleshy stems that trap soil, sand, and pesticide residues in natural crevices. Unlike simple spray washers that only remove surface dirt, our bubble-spray combination penetrates these crevices, dislodging embedded grit that would otherwise remain after conventional washing. The bubble action effectively removes soil, silt, impurities, and pesticide residues from every fold and crevice of the leaves.

2. Gentle Handling Preserves Leaf Integrity
The bubble tumbling action is inherently gentle—Swiss chard leaves float and tumble softly in the water rather than being subjected to aggressive mechanical agitation. This minimizes bruising, tearing, and breakage—common problems with brush-roller or high-pressure-only systems. In side-by-side tests, roller-type machines have been shown to cause 15–20% leaf damage, while bubble washers keep leaves intact. The result is a higher yield of whole, undamaged leaves that command premium prices in fresh and processed vegetable markets.

3. Significant Labor Savings and Operational Efficiency
With a processing capacity of 500 kg per hour, this machine replaces what would otherwise require a team of manual laborers performing repetitive soaking, agitating, and rinsing tasks. The continuous-feed conveyor design allows for uninterrupted operation, dramatically increasing throughput while reducing labor costs and minimizing worker fatigue. For commercial operations, this translates directly to improved profit margins and the ability to scale production without proportional increases in headcount.

4. Water Conservation Through Recirculation
The circulating water filtration system dramatically reduces fresh water consumption compared to single-pass washing systems—saving up to 60% of water usage. By continuously filtering and reusing wash water, the machine achieves thorough cleaning with a fraction of the water volume required by conventional methods. This not only lowers operating costs but also reduces wastewater discharge, supporting sustainability initiatives and compliance with environmental regulations.

1. Enhanced Food Safety and Extended Shelf Life
Thorough removal of soil, sand, pesticide residues, and microbial contaminants ensures that processed Swiss chard meets the highest food safety standards. Cleaner produce has lower bacterial loads, resulting in longer refrigerated shelf life and greater consumer confidence. Given that Swiss chard is highly susceptible to oxidative stress, microbial contamination, and physiological degradation during storage, effective cleaning is the critical first step in preserving quality. Ozone bubble technology, when integrated, can destroy bacteria (E. coli, Salmonella, Listeria), viruses, and mold while breaking down pesticide residues into harmless byproducts.

2. Reduced Product Waste and Higher Yields
Gentle processing means fewer damaged leaves are rejected during sorting and packaging. Every kilogram of Swiss chard that survives the washing process intact represents revenue that would otherwise be lost to breakage and spoilage. Over thousands of kilograms of throughput, this yield advantage translates into substantial annual savings—with some operators reporting loss rates as low as 0.5% with optimized cleaning systems.

3. Versatility Across Multiple Leafy Green Varieties
While optimized for Swiss chard, the machine's adjustable parameters make it equally suitable for spinach, kale, collard greens, mustard greens, cabbage, lettuce, and other leafy vegetables. This versatility allows processors to handle multiple product lines with a single piece of equipment, maximizing return on investment and simplifying production scheduling.

4. Scalable, Future-Ready Processing Capacity
The 500 kg/h throughput positions your operation for immediate production demands while providing a foundation for future growth. As your business expands, the machine's robust construction, modular design, and customizable features allow for integration into larger processing lines without obsolescence. The equipment's strong adaptability can meet the needs of large-scale production, improving efficiency and extending the shelf life of processed vegetables.

The Industrial Swiss Chard Vegetable Bubble Washing Machine is far more than a standard piece of equipment—it is a comprehensive, reliable, and cost-effective processing solution that directly addresses the unique cleaning demands of Swiss chard and other delicate leafy greens. From its gentle yet powerful bubble-based cleaning action to its intelligent water-saving design and robust stainless-steel construction, every aspect of this machine is engineered to help you deliver the cleanest, most intact leafy greens to your customers, while boosting your operational efficiency and profitability.

We understand that every processing line has its own constraints and requirements. That is why we offer full customization—from capacity adjustments to special material options—to ensure the machine perfectly fits your facility and product mix.
