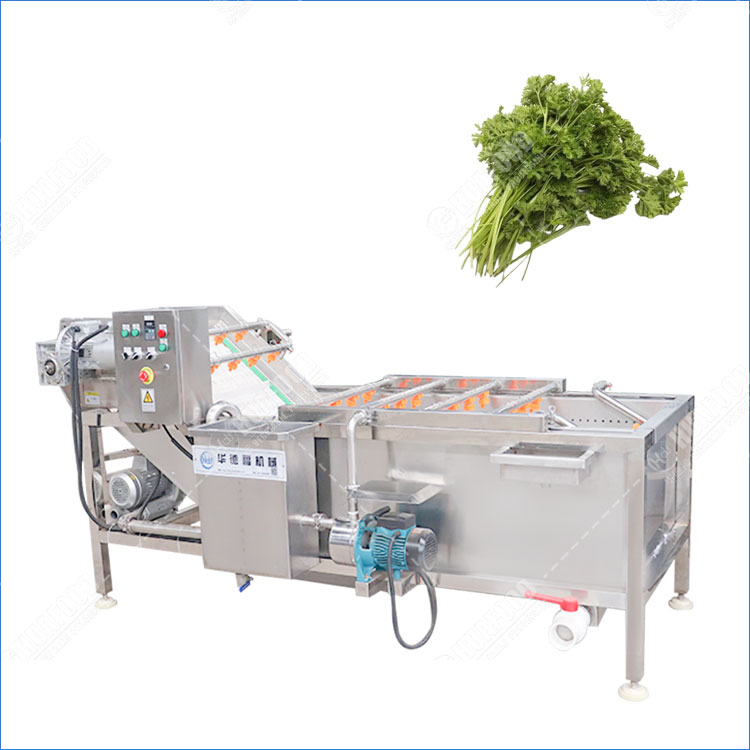

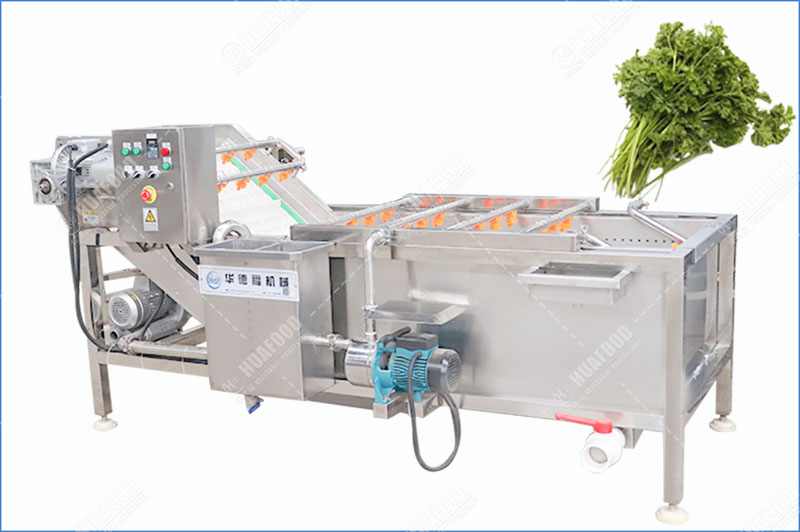

Automatic Mustard Greens Washing Machine with Air Bubble Washer

The machine operates on a combined agitazione con bolle d'aria + circolazione del flusso d'acqua principle. Mustard greens are fed onto a mesh conveyor belt that carries them through a multi-stage water tank. At the bottom and sides of the tank, strategically positioned air nozzles release high-pressure air, generating millions of micro-bubbles that rise rapidly through the water column. As these bubbles implode upon contact with the leaf surfaces, they create micro-vibrations and localized water turbulence that dislodge dirt, sabbia, residui di insetti, and agricultural debris from the wrinkled folds and crevices of mustard greens — without the mechanical abrasion of brush rollers. Contemporaneamente, a circulating water system constantly filters and overflows floating impurities, ensuring the greens are always washed in clean water throughout the process.

1. Dedicated Air Bubble Cleaning Array
The tank is fitted with a dense grid of food-grade stainless steel air nozzles, specifically spaced and angled to generate optimal bubble coverage for leafy greens. The bubble intensity is adjustable via a frequency-controlled air pump, allowing operators to fine-tune cleaning power based on the maturity and soil load of the mustard greens.

2. Customized Mesh Conveyor System
The conveyor belt is made of wear-resistant polypropylene (PP) mesh with an optimized aperture size that prevents small mustard green leaves and stem fragments from falling through, while allowing sand and sediment to pass freely into the collection zone. The belt speed is variable (1–12 m/min), synchronized with the washing cycle to match different throughput requirements.

3. Multi-Stage Countercurrent Rinse Design
The washing tank is divided into 2–3 independent compartments with a countercurrent water flow direction — cleanest water enters at the discharge end and flows backward toward the feed end. This ensures that mustard greens encounter progressively cleaner water as they move through the machine, minimizing cross-contamination.

4. Integrated Debris Filtration and Water Recycling System
A dual-layer filter (100-mesh + 200-mesh) continuously separates coarse particles and fine silt from the wash water. A self-priming circulation pump recirculates filtered water back to the tank, reducing water consumption by up to 70% compared to conventional single-pass washers — an important feature for water-sensitive processing facilities.

1. Gentle Yet Deep Cleaning Suitable for Mustard Greens Structure
Mustard greens have distinct petioles (leaf stalks) and broad, finely wrinkled leaf blades where soil particles tend to lodge. The air bubble action cleans deep into these crevices without the tearing, lividi, or crushing that mechanical brush washers cause. This directly translates to higher yield rates — typically 2–5% less product loss compared to roller-type washers.

2. Significant Reduction in Leaf Breakage and Stem Damage
Because cleaning relies on fluid dynamics rather than physical friction, the machine preserves the natural turgidity of mustard green stems and leaves. Processed greens maintain their crisp texture and visual appeal, which is critical for both fresh-market presentation and IQF (Individual Quick Freezing) lines where damaged greens are rejected.

3. Efficient Removal of Mustard Greens-Specific Contaminants
Mustard greens are field-grown in sandy, loamy soils and often harbor tiny pebbles, afidi, and thrips in their leaf axils. The high-frequency bubble implosion creates a scrubbing effect at the microscopic level, raggiungimento 99.2%+ removal rate of surface impurities based on third-party testing, outperforming conventional soaking and spray-washing methods.

4. Scalable Water and Energy Efficiency
By incorporating automatic water level control, frequency-conversion drive, and a high-efficiency filtration loop, the machine consumes only 1.5–2.5 m³ of water per ton of mustard greens processed — roughly half the industry average. Energy consumption is equally optimized at 3.5–5.5 kWh per ton, making the equipment both environmentally sustainable and cost-competitive over long production runs.

1. Boosted Processing Capacity with Stable, Predictable Output
The continuous feed design, combined with the synchronized conveyor and bubble system, delivers a consistent throughput of 500–3,000 kg/hour (depending on model). Processors can confidently plan production schedules without the bottlenecks and manual labor variability associated with batch-type washers.

2. Lower Labor Costs and Reduced Manual Intervention
The automatic feed — wash — discharge cycle requires only 1–2 operators for oversight, eliminating the 6–10 workers typically needed for manual washing and inspection. With rising labor costs in the food processing industry, this represents an annual saving of $30,000–$60,000 for medium-scale facilities.

3. Maggiore conformità alla sicurezza alimentare
All contact surfaces are 304 acciaio inossidabile, and the open-top tank design allows for easy daily cleaning and CIP (Clean-in-Place) compatibility. The thorough air bubble washing effectively reduces microbial load and particulate residue, helping processors meet HACCP, BRC, and FDA sanitation standards with confidence.

4. Improved Shelf Life and Final Product Quality
Mustard greens cleaned with air bubble technology retain significantly more surface moisture than abrasively cleaned greens — contrary to intuition, this controlled moisture retention actually prevents rapid wilting by maintaining turgor pressure. Processors report a 1–2 day extension in chilled shelf life, which translates to less spoilage throughout the cold chain and greater retailer satisfaction.

IL Automatic Mustard Greens Washing Machine with Air Bubble Washer is not merely a piece of washing equipment — it is a complete process solution tailored to the specific morphological and contamination characteristics of mustard greens. From its bubble jet cleaning array that reaches every wrinkle of the leaf, to its countercurrent rinse system and water recycling loop, every feature is designed to deliver higher yield, better product quality, minori costi operativi, and stronger food safety compliance.

If you are processing mustard greens — whether for fresh-cut salad, IQF frozen packs, pickled products, or dehydrated flakes — this machine will outperform generic vegetable washers on every KPI that matters to your bottom line.

👉 Leave us a message below or click the online chat button to share your daily processing volume and product specifications. Our engineering team will provide a customized equipment recommendation, layout drawing, and quotation — tailored precisely to your mustard green processing line.

Let's work together to make your mustard green washing cleaner, gentler, and more profitable.
