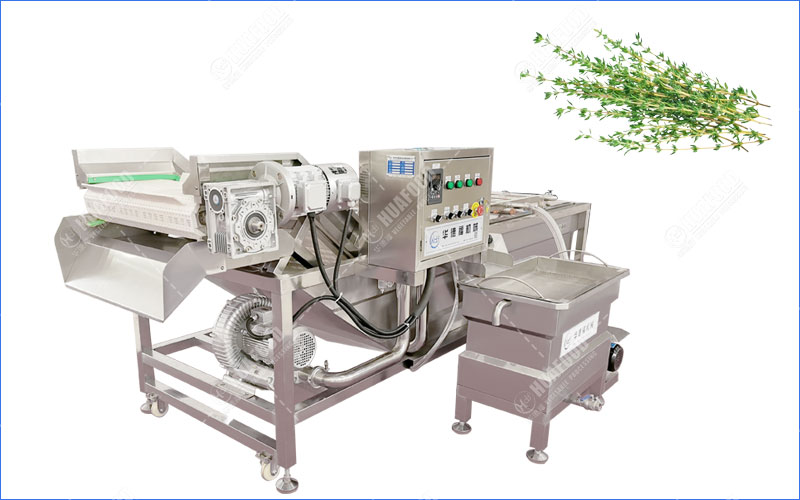

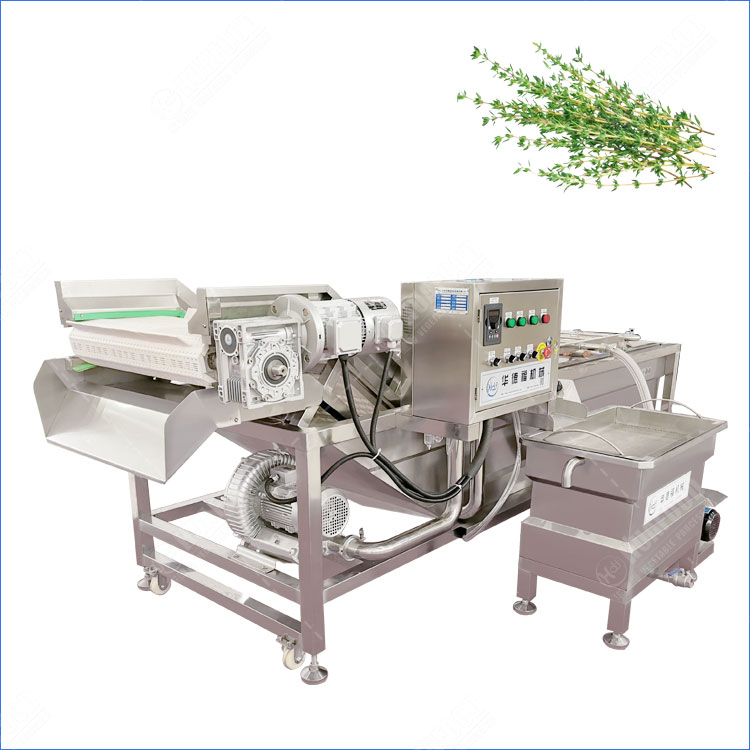

The Industrial Thyme Bubble Washing Machine with Ozone Deep Sanitization is an industrial-grade system specifically engineered for thyme and other herbs, integrating high-density bubble-based physical cleaning with deep ozone sanitization technology. Thyme is a delicate herb characterized by small leaves, tender stems, and a natural waxy surface layer; conventional high-pressure water washing often causes leaf damage and the loss of active compounds. This vegetable washing machine is designed to meet the unique cleaning requirements of such delicate herbs: it utilizes a gentle yet highly efficient tumbling bubble action to dislodge contaminants, combined with the powerful oxidizing properties of ozonated water for deep sterilization. This process achieves industrial-grade cleanliness while fully preserving the integrity of the thyme leaves and their natural aromatic compounds. Constructed entirely from high-quality, per uso alimentare 304 stainless steel and compliant with national food export standards, the machine is suitable for industrial processing lines handling herbs such as thyme, rosmarino, oregano, and mint.
The operating principle of this equipment can be summarized as a synergistic dual-action process: "physical cleaning via air bubbles" combined with "chemical disinfection via ozone."
**Physical Cleaning Phase (Air Bubbles):** A vortex air pump generates a high-pressure airflow, which is released through aeration pipes submerged in the water tank, creating a dense cloud of micro-bubbles. As these micro-bubbles rise and burst, they generate minute shockwaves and turbulence, keeping the thyme in a state of continuous agitation. The gentle impact force of the bubbles penetrates the folds of the leaves and the junctions between stems and leaves, loosening and dislodging attached soil, sabbia, uova di insetti, and other impurities without damaging the delicate thyme leaves and stems.
**Deep Disinfection Phase (Ozono):** An integrated ozone generator produces ozone from air or oxygen using high-frequency, high-voltage discharge. An ozone pump delivers the gas through piping into the cleaning tank, where it dissolves into the water upon contact. Ozono (O₃) is a powerful oxidizing agent; it disinfects by disrupting bacterial cell membrane structures and viral protein coats, thereby impairing microbial metabolism and leading to inactivation. Research indicates that contact with ozonated water rapidly eliminates harmful microorganisms—such as *E. coli* and viruses—from the surface of the produce. After disinfection, ozone naturally decomposes into oxygen, leaving no toxic residues.
Certain high-end models also feature micro-nano bubble generation technology; by combining ozone with micro-nano bubbles, the solubility and stability of ozone in water are significantly increased, further enhancing the sterilization and disinfection efficacy.
Zero damage to delicate herbs
Unlike traditional high-pressure spray washing, the gentle impact force of micro-bubbles effectively dislodges contaminants without damaging thyme leaves or stems. This is particularly crucial for herbs like thyme, which have thin, fragile leaves; the washed product retains its structural integrity and excellent visual quality.
Highly efficient sterilization with no residue
Ozone possesses powerful bactericidal capabilities, effectively eliminating common foodborne pathogens such as *E. coli* and *Streptococcus faecalis* with an eradication rate exceeding 99%. Crucially, ozone naturally decomposes into oxygen after disinfection, leaving no chemical residues and preserving the purity of the thyme as a natural herb.
Superior cleaning performance compared to traditional methods
The continuous rolling action of the bubbles ensures comprehensive, thorough cleaning of the product from all angles. Combined with the chemical oxidation of ozonated water, this process simultaneously removes surface dirt, microrganismi, e residui di pesticidi. Research indicates that ozone micro-nano bubble cleaning can increase contaminant removal rates for leafy vegetables by over 90%.
High automation suitable for continuous industrial production
The equipment enables an automated workflow covering continuous feeding, lavaggio, disinfezione, and discharge. Conveying speeds are infinitely adjustable, ensuring stable and reliable production capacity. A single unit can process over 1,000 kg all'ora, significantly reducing labor costs and enhancing processing efficiency.
High-Density Micro-Bubble Cleaning System
The equipment is equipped with a high-power vortex air pump and a precision aeration piping system, capable of generating a uniform, denso, and stable cloud of micro-bubbles within the cleaning tank. Bubble density and intensity can be infinitely adjusted based on the specific characteristics of the material to ensure optimal cleaning results.
Integrated Deep Ozone Disinfection Module
The unit features a built-in, independent ozone generation system that utilizes high-frequency, high-voltage discharge technology to produce high concentrations of ozone. This ozone is delivered directly into the wash water via a dedicated pipeline, creating an ozone-enriched solution with powerful bactericidal capabilities. Ozone output can be precisely regulated according to cleaning requirements.
All-304 Food-Grade Stainless Steel Construction
The entire machine is constructed from high-quality SUS304 stainless steel and designed and manufactured in strict accordance with national standards for food exports. The structure is robust and durable, offering excellent corrosion resistance and full compliance with food industry hygiene regulations.
Multi-Stage Cleaning and Intelligent Conveying System
The equipment integrates multiple cleaning functions, including micro-bubble cleaning, circulating water turbulence, and a high-pressure spray rinse in the discharge section. The conveyor belt speed is manually adjustable across a continuous range (1.8–9.0 m/min), allowing for flexible settings regarding cleaning duration and intensity based on the thyme variety, maturity, and initial cleanliness level.
Enhancing Product Quality and Market Competitiveness
Thyme processed by this equipment retains intact leaves and vibrant color, free from residual impurities. Inoltre, deep ozone disinfection ensures microbial standards far superior to those achieved by traditional washing methods, directly meeting the rigorous quality requirements of high-end herb processors and export markets.
Reducing Food Safety Risks
Ozone offers broad-spectrum elimination of various microorganisms—including bacteria, virus, and molds—effectively removing pathogens that thyme may have picked up during cultivation, raccolta, and transport, thereby ensuring consumer safety at the source.
Extending Shelf Life
During the washing process, ozonated water not only eliminates surface microorganisms but also slows the product's metabolic rate. This significantly extends the shelf life of the thyme, reduces losses during distribution, and creates greater economic value for the customer.
Lowering Overall Operating Costs
The equipment features a recirculating water system for high water-use efficiency; it utilizes air as the raw material for ozone generation, resulting in low operating costs; and fully automated operation drastically reduces labor requirements. Complessivamente, the equipment enhances cleaning quality while effectively lowering the customer's unit operating costs.
The Industrial Thyme Bubble Washing Machine with Ozone Deep Sanitization is an industrial-grade cleaning and disinfection solution specifically designed for delicate herbs like thyme. It combines gentle physical cleaning via high-density air bubbles with powerful chemical disinfection using ozonated water, achieving cleanliness and safety standards far superior to traditional methods while ensuring the product remains intact. Whether you are an herb processor aiming to enhance product quality or a production line manager seeking an efficient, automated cleaning solution, this equipment offers reliable, high-performance, and cost-effective support.
If you would like to learn more about the technical specifications, Opzioni di personalizzazione, or receive tailored advice for your specific cleaning needs, please leave a message online or contact us via email. Our team of professional engineers is ready to provide detailed technical information and personalized solutions promptly.
Leave a message online now to receive full equipment specifications and a price quote!
