水果和蔬菜分类机/

土豆, 红薯根茎清洗分选机

模型: JCGG-6000D

适用范围: potatoes, 红薯

方面 (长度 * 宽度 * 高度毫米) 16470*1630*1850

排序级别: 5 级别.

工作效率: 6-8t/h

工作电源: 380V

额定功率: 13.8千瓦

  • 产品详情
  • 技术数据
  • Root Vegetable Cleaning Processing Flow
  • Features

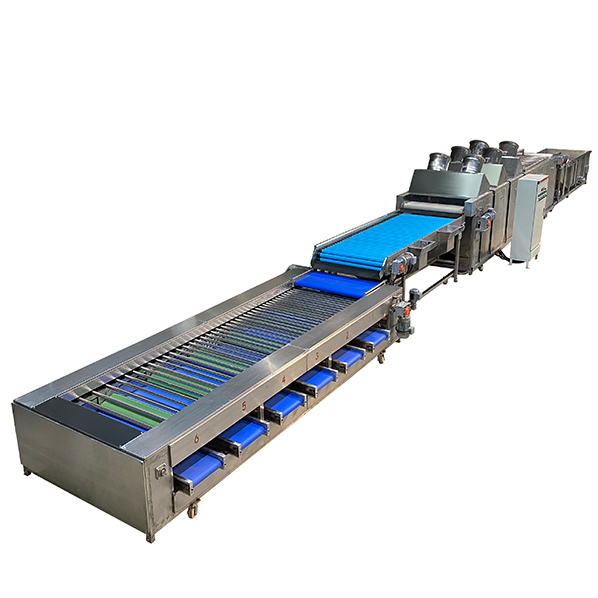

The sweet potato cleaning, air-drying and grading production line is mainly used for cleaning, air-drying and grading sweet potatoes, potatoes and other root vegetables. The whole production line is reasonably designed, more user-friendly, highly automated, has good cleaning effect, and the material is not damaged. The material after air drying has a better preservation effect. It is an ideal processing equipment for large supermarkets and agricultural product processing.

The sweet potato cleaning and grading machine is composed of a bubble elevator, a high-pressure brush cleaning machine, a polishing air dryer and a grading machine. The sweet potatoes are poured into the bubble elevator to soak the soil, then enter the high-pressure brush cleaning machine to clean it, and then enter the polishing air dryer. Brush the water on the surface of the sweet potato to the grading machine. The grading machine is a roller-type grading machine. The roller-type grading machine rotates through the pitch to drive the rollers on the grading bed to move forward in parallel, and gradually increase the rollers. The gap between the sweet potatoes reaches the corresponding size of the sweet potatoes, so that the sweet potatoes fall from the gap between the rollers to the fruit conveyor belt, completing the purpose of grading the size of sweet potatoes.

模型: JCGG-6000D

适用范围: potatoes, 红薯

方面 (长度 * 宽度 * 高度毫米) 16470*1630*1850

排序级别: 5 级别.

工作效率: 6-8t/h

工作电源: 380V

额定功率: 13.8千瓦

Washing Tank with Lifting conveyor → linear brush washing machine with sprayer → air drying machine → grading machine → finished product

1) This machine can be customized according to your needs

2) The grading and sorting efficiency is high and the effect is good

3) The whole machine is made of stainless steel, which is highly safe

4) The material is not damaged, and the air-dried material has a better preservation effect

5) Continuous, high-yield, highly automated, and can be matched with large production lines
